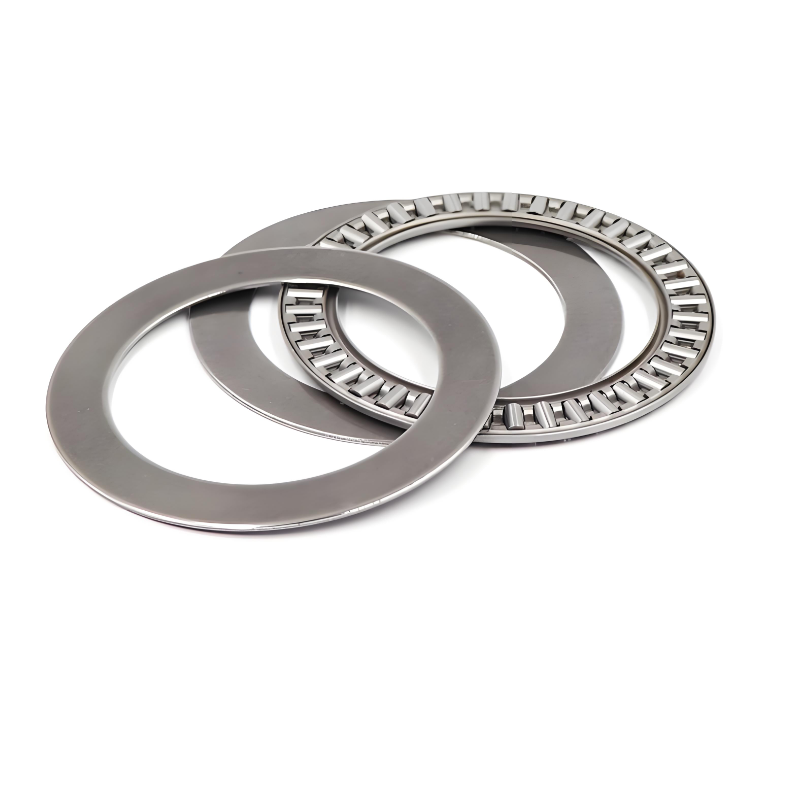

Thrust Roller Bearings

Product Information

Cylindrical Roller Thrust Bearings - 893 Series
Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)	Mass(Kg)	Bearing Number
d	D	T	rs min	Ca	Coa	Oil	(Approx.)	KML
150	215	39	1.5	340	1,340	1,800	4.56	29230
160	225	39	1.5	360	1,460	1,700	4.88	29232
170	240	42	1.5	425	1,770	1,600	6.02	29234
180	250	42	1.5	450	1,920	1,600	6.27	29236
190	270	48	2	530	2,230	1,400	8.8	29238
200	280	48	2	535	2,300	1,400	9.14	29240

Cylindrical Roller Thrust Bearings - 811Series
Boundary dimensions(mm)								Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	d1s	D1s	T	Dw	B	rs	Cr	Cor	Grease	Oil	(Approx.)	KML
d	D	max	min	T	Dw	B	min	Cr	Cor	Grease	Oil	(Approx.)	KML
15	28	28	16	9	3.5	2.75	0.3	12.9	28.6	2800	11000	0.026	81102
17	30	30	18	9	3.5	2.75	0.3	13.4	31	2500	10000	0.03	81103
20	35	35	21	10	4.5	2.75	0.3	20.2	46.5	2100	8500	0.004	81104
25	42	42	26	11	5	3	0.6	27.3	68	1800	7000	0.006	81105
30	47	47	32	11	5	3	0.6	27.8	72.5	1500	6000	0.007	81106
35	52	52	37	12	5	3.5	0.6	31	87	1400	5500	0.009	81107
40	60	60	42	13	6	3.5	0.6	43	121	1200	4800	0.135	81108
45	65	65	47	14	6	4	0.5	45.5	135	1100	4400	0.15	81109
50	70	70	52	14	6	4	0.5	48	150	1000	4000	0.165	81110
55	78	78	57	16	6	5	0.6	62.5	215	900	3600	0.25	81111
60	85	85	62	17	7.5	4.75	1	69	215	830	3300	0.285	81112
65	90	90	67	18	7.5	5.25	1	73	236	780	3100	0.34	81113
70	95	95	72	18	7.5	5.25	1	76.5	257	730	2900	0.365	81114
75	100	100	77	19	7.5	5.75	1	78	268	680	2700	0.425	81115
80	105	105	82	19	7.5	5.75	1	79.5	279	650	2600	0.445	81116
85	110	110	87	19	7.5	5.75	1	83	300	630	2500	0.475	81117
90	120	120	92	22	9	6.5	1	112	395	580	2300	0.67	81118
100	135	135	102	25	11	7	1	158	555	500	2000	1	81120
110	145	145	112	25	11	7	1	165	605	480	1900	1.1	81122
120	155	155	122	25	11	7	1	172	655	450	1800	1.17	81124
Boundary dimensions(mm)								Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	d1s	D1s	T	Dw	B	rs	Cr	Cor	Grease	Oil	(Approx.)	KML
d	D	max	min	T	Dw	B	min	Cr	Cor	Grease	Oil	(Approx.)	KML
130	170	170	132	30	12	9	1	197	755	400	1600	1.74	81126
140	180	178	142	31	12	9.5	1	206	815	380	1500	1.95	81128
150	190	188	152	31	12	9.5	1	214	870	350	1400	2.07	81130
160	200	198	162	31	12	9.5	1	221	930	330	1300	2.19	81132

Cylindrical Roller Thrust Bearings - 812Series
Boundary dimensions(mm)								Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	d1s	D1s	T	Dw	B	rs	Cr	Cor	Grease	Oil	(Approx.)	KML
d	D	max	min	T	Dw	B	min	Cr	Cor	Grease	Oil	(Approx.)	KML
30	52	52	32	16	7.5	4.25	0.6	53.5	129	1500	6000	0.14	81206
35	62	62	37	18	7.5	5.25	1	54.5	139	1200	4900	0.235	81207
40	68	68	42	19	9	5	1	74.5	190	1100	4400	0.265	81208
45	73	73	47	20	9	5.5	1	82	222	1000	4100	0.31	81209
50	78	78	52	22	9	6.5	1	85	238	950	3800	0.385	81210
55	90	90	57	25	11	7	1	121	340	830	3300	0.61	81211
60	95	95	62	26	11	7.5	1	125	365	780	3100	0.66	81212
65	100	100	67	27	11	8	1	130	385	730	2900	0.775	81213
70	105	105	72	27	11	8	1	134	410	680	2700	0.815	81214
75	110	110	77	27	11	8	1	138	435	650	2600	0.86	81215
80	115	115	82	28	11	8.5	1	142	460	630	2500	0.95	81216
85	125	125	88	31	12	9.5	1	169	550	580	2300	1.28	81217
90	135	135	93	35	14	10.5	1.1	213	680	530	2100	1.82	81218
100	150	150	103	38	15	11.5	1.1	243	795	480	1900	2.24	81220
110	160	160	113	38	15	11.5	1.1	259	885	450	1800	2.45	81222
120	170	170	123	39	15	12	1.1	264	930	430	1700	2.69	81224
130	190	187	133	45	19	13	1.5	360	1210	380	1500	4.2	81226
140	200	197	143	46	19	13.5	1.5	370	1280	350	1400	4.57	81228
