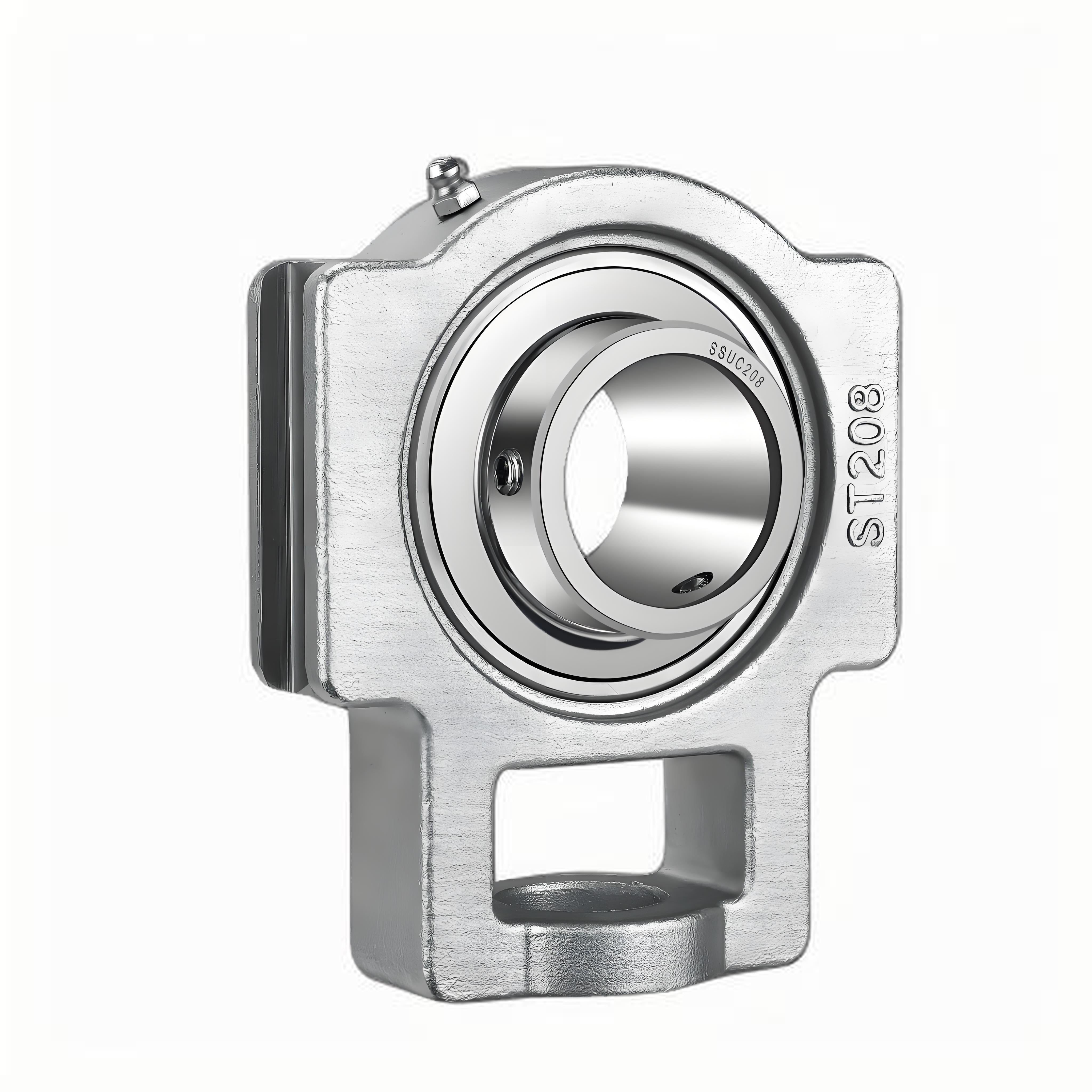

Stainless Steel Bearings

Product Information

Table 46 - Primium grade ball bearings


No.		Boundary Dimensions			Basic load ratings N		Limiting speeds		Mass
No.		mm					rpm		kg
with seals	with shield						Lubrication		Open Type
		d	B	r s min	Dynamic Cr	Static	Grease	Oil
		d	B	r s min	Dynamic Cr	Cor	Grease	Oil
608-2RDQE6	608-ZZQE6	8	7	0.3	3350	1400	32000	37000	0.012
6000-2RDQE6	6000-ZZQE6	10	8	0.3	4550	1960	29000	34000	0.019
6200-2RDQE6	6200-ZZQE6	10	9	0.6	5100	2390	25000	30000	0.032
6300-2RDQE6	6300-ZZQE6	10	11	0.6	5200	3500	23000	27000	0.058
6001-2RDQE6	6001-ZZQE6	12	8	0.3	5100	2390	26000	30000	0.021
6201-2RDQE6	6201-ZZQE6	12	10	0.6	6100	2750	22000	26000	0.037
6301-2RDQE6	6301-ZZQE6	12	12	1	9700	4200	20000	24000	0.06
6002-2RDQE6	6002-ZZQE6	15	9	0.3	5600	2840	22000	26000	0.03
6202-2RDQE6	6202-ZZQE6	15	11	0.6	7750	3600	19000	23000	0.045
6302-2RDQE6	6302-ZZQE6	15	13	1	11400	54500	17000	21000	0.082
6003-2RDQE6	6003-ZZQE6	17	10	0.3	6800	3350	20000	24000	0.039
6203-2RDQE6	6203-ZZQE6	17	12	0.6	9600	4600	18000	21000	0.068
6303-2RDQE6	6303-ZZQE6	17	14	1	13500	6550	16000	19000	0.115
6403-2RDQE6	6403-ZZQE6	17	17	1.1	22700	10800	14000	16000	0.27
6004-2RDQE6	6004-ZZQE6	20	12	0.6	9400	5050	18000	21000	0.069
6204-2RDQE6	6204-ZZQE6	20	14	1	12800	6650	16000	18000	0.106
6304-2RDQE6	6304-ZZQE6	20	15	1.1	15900	7900	14000	17000	0.144
6005-2RDQE6	6005-ZZQE6	25	12	0.6	10400	5850	15000	18000	0.08
6205-2RDQE6	6205-ZZQE6	25	15	1	14000	7850	13000	15000	0.128
6305-2RDQE6	6305-ZZQE6	25	17	1.1	21200	10900	12000	14000	0.232
6006-2RDQE6	6006-ZZQE6	30	13	1	13200	8300	13000	15000	0.116
6206-2RDQE6	6206-ZZQE6	30	16	1	19500	11300	11000	13000	0.2
6306-2RDQE6	6306-ZZQE6	30	19	1.1	26700	15000	10000	12000	0.36
6007-2RDQE6	6007-ZZQE6	35	14	1	16000	10300	12000	14000	0.155
6207-2RDQE6	6207-ZZQE6	35	17	1.1	25700	15300	9800	11000	0.29
6307-2RDQE6	6307-ZZQE6	35	21	1.5	33500	19100	8800	10000	0.46
6008-2RDQE6	6008-ZZQE6	40	15	1	16800	11500	10000	12000	0.19
6208-2RDQE6	6208-ZZQE6	40	18	1.1	29100	17800	8700	10000	0.37
6308-2RDQE6	6308-ZZQE6	40	23	1.5	40500	24000	7800	9200	0.63
6009-2RDQE6	6009-ZZQE6	45	16	1	21000	15100	9200	11000	0.24
6209-2RDQE6	6209-ZZQE6	45	19	1.1	32500	20400	7800	9200	0.4
6309-2RDQE6	6309-ZZQE6	45	25	1.5	53000	32000	7000	8200	0.81
6010-2RDQE6	6010-ZZQE6	50	16	1	21800	16600	8400	9800	0.26
6210-2RDQE6	6210-ZZQE6	50	20	1.1	35000	23200	7100	8300	0.45
6310-2RDQE6	6310-ZZQE6	50	27	2	62000	38500	6400	7500	1.07

Table 34: "CORROSION RESISTANT" -- SSUCTPP 200Series
Bearing		Dimensions(mm)										Bolt	Bearing	Housing	Basic Dynamic	Weight	Unit Number
Bore Dia.												Dia.	No.	No.	Radial Load
															Rating(c)
Inch	mm	h	a	e	b	s1	s2	g	w	Bi	n				N	Kg
42006		33.3	127	95	38	11	14	14.2	65	31	12.7	42071	SSUC201-8	TPP204	10890	0.23	SSUCTPP201-8
42132		33.3	127	95	38	11	14	14.2	65	31	12.7	42071	SSUC202-10	TPP204	10890	0.23	SSUCTPP202-10
	20	33.3	127	95	38	11	14	14.2	65	31	12.7	M10	SSUC204	TPP204	10890	0.23	SSUCTPP204
42067		33.3	127	95	38	11	14	14.2	65	31	12.7	42071	SSUC204-12	TPP204	10890	0.23	SSUCTPP204-12
	25	36.6	140.5	105	38	11	14	14.5	70	34	14.3	M10	SSUC205	TPP205	11910	0.31	SSUCTPP205
42193		36.6	140.5	105	38	11	14	14.5	70	34	14.3	42071	SSUC205-14	TPP205	11910	0.31	SSUCTPP205-14
15/16		36.6	140.5	105	38	11	14	14.5	70	34	14.3	42071	SSUC205-15	TPP205	11910	0.31	SSUCTPP205-15
1		36.6	140.5	105	38	11	14	14.5	70	34	14.3	42071	SSUC205-16	TPP205	11910	0.31	SSUCTPP205-16
	30	42.9	163	119	46	14	18	17.8	84	38.1	15.9	M12	SSUC206	TPP206	16670	0.43	SSUCTPP206
36907		42.9	163	119	46	14	18	17.8	84	38.1	15.9	42201	SSUC206-17	TPP206	16670	0.43	SSUCTPP206-17
36899		42.9	163	119	46	14	18	17.8	84	38.1	15.9	42201	SSUC206-18	TPP206	16670	0.43	SSUCTPP206-18
36966		42.9	163	119	46	14	18	17.8	84	38.1	15.9	42201	SSUC206-19	TPP206	16670	0.43	SSUCTPP206-19
1-1/4S		42.9	163	119	46	14	18	17.8	84	38.1	15.9	42201	SSUC206-20	TPP206	16670	0.43	SSUCTPP206-20
	35	47.6	168	127	48	14	18	18	94.5	42.9	17.5	M12	SSUC207	TPP207	22000	0.58	SSUCTPP207
36895		47.6	168	127	48	14	18	18	94.5	42.9	17.5	42201	SSUC207-20	TPP207	22000	0.58	SSUCTPP207-20
37027		47.6	168	127	48	14	18	18	94.5	42.9	17.5	42201	SSUC207-21	TPP207	22000	0.58	SSUCTPP207-21
36958		47.6	168	127	48	14	18	18	94.5	42.9	17.5	42201	SSUC207-22	TPP207	22000	0.58	SSUCTPP207-22
37088		47.6	168	127	48	14	18	18	94.5	42.9	17.5	42201	SSUC207-23	TPP207	22000	0.58	SSUCTPP207-23
	40	49.2	184	137	54	14	18	19.5	99	49.2	19	M12	SSUC208	TPP208	24890	0.87	SSUCTPP208
36893		49.2	184	137	54	14	18	19.5	99	49.2	19	42201	SSUC208-24	TPP208	24890	0.87	SSUCTPP208-24
	45	54	192	146	54	17	20	23	106	49.2	19	M16	SSUC209	TPP209	28090	1.21	SSUCTPP209
37019		54	192	146	54	17	20	23	106	49.2	19	42132	SSUC209-26	TPP209	28090	1.21	SSUCTPP209-26
37211		54	192	146	54	17	20	23	106	49.2	19	42132	SSUC209-27	TPP209	28090	1.21	SSUCTPP209-27
36954		54	192	146	54	17	20	23	106	49.2	19	42132	SSUC209-28	TPP209	28090	1.21	SSUCTPP209-28
	50	57.2	206	159	60	17	20	23	114	51.6	19	M16	SSUC210	TPP210	30180	1.37	SSUCTPP210
37080		57.2	206	159	60	17	20	23	114	51.6	19	42132	SSUC210-30	TPP210	30180	1.37	SSUCTPP210-30
1-15/16		57.2	206	159	60	17	20	23	114	51.6	19	42132	SSUC210-31	TPP210	30180	1.37	SSUCTPP210-31
2		57.2	206	159	60	17	20	23	114	51.6	19	42132	SSUC210-32	TPP210	30180	1.37	SSUCTPP210-32

Table 35: "CORROSION RESISTANT" -- SSUCTPTB 200Series
Bearing		Dimensions(mm)								Bearing	Housing	Basic Dynamic	Weight	Unit Number
Bore Dia.										No.	No.	Radial Load
												Rating(c)
Inch	mm	a	b	h	m	w	s	Bi	n			N	Kg
42006		33.3	34.5	66	50.8	72.8	42140	31	12.7	SSUC201-8	TPTB204	10890	0.32	SSUCTPTB201-8
42132		33.3	34.5	66	50.8	72.8	42140	31	12.7	SSUC202-10	TPTB204	10890	0.32	SSUCTPTB202-10
	20	33.3	34.5	66	50.8	72.8	M8	31	12.7	SSUC204	TPTB204	10890	0.32	SSUCTPTB204
42067		33.3	34.5	66	50.8	72.8	42071	31	12.7	SSUC204-12	TPTB204	10890	0.32	SSUCTPTB204-12
	25	36.5	39.5	73.5	50.8	76.2	M10	34	14.3	SSUC205	TPTB205	11910	0.36	SSUCTPTB205
42193		36.5	39.5	73.5	50.8	76.2	42071	34	14.3	SSUC205-14	TPTB205	11910	0.36	SSUCTPTB205-14
15/16		36.5	39.5	73.5	50.8	76.2	42071	34	14.3	SSUC205-15	TPTB205	11910	0.36	SSUCTPTB205-15
1		36.5	39.5	73.5	50.8	76.2	42071	34	14.3	SSUC205-16	TPTB205	11910	0.36	SSUCTPTB205-16
	30	42.9	42.5	84	76.2	101	M10	38.1	15.9	SSUC206	TPTB206	16670	0.59	SSUCTPTB206
36907		42.9	42.5	84	76.2	101	42071	38.1	15.9	SSUC206-17	TPTB206	16670	0.59	SSUCTPTB206-17
36899		42.9	42.5	84	76.2	101	42071	38.1	15.9	SSUC206-18	TPTB206	16670	0.59	SSUCTPTB206-18
36966		42.9	42.5	84	76.2	101	42071	38.1	15.9	SSUC206-19	TPTB206	16670	0.59	SSUCTPTB206-19
1-1/4S		42.9	42.5	84	76.2	101	42071	38.1	15.9	SSUC206-20	TPTB206	16670	0.59	SSUCTPTB206-20
	35	47.6	47.5	95	82.6	110	M10	42.9	17.5	SSUC207	TPTB207	22000	0.8	SSUCTPTB207
36895		47.6	47.5	95	82.6	110	42071	42.9	17.5	SSUC207-20	TPTB207	22000	0.8	SSUCTPTB207-20
37027		47.6	47.5	95	82.6	110	42071	42.9	17.5	SSUC207-21	TPTB207	22000	0.8	SSUCTPTB207-21
36958		47.6	47.5	95	82.6	110	42071	42.9	17.5	SSUC207-22	TPTB207	22000	0.8	SSUCTPTB207-22
37088		47.6	47.5	95	82.6	110	42071	42.9	17.5	SSUC207-23	TPTB207	22000	0.8	SSUCTPTB207-23
	40	49.2	48	100.5	88.9	120	M12	49.2	19	SSUC208	TPTB208	24890	1.07	SSUCTPTB208
36893		49.2	48	100.5	88.9	120	42201	49.2	19	SSUC208-24	TPTB208	24890	1.07	SSUCTPTB208-24
	45	54	54	107	95.3	124	M12	49.2	19	SSUC209	TPTB209	28090	1.15	SSUCTPTB209
37019		54	54	107	95.3	124	42201	49.2	19	SSUC209-26	TPTB209	28090	1.15	SSUCTPTB209-26
37211		54	54	107	95.3	124	42201	49.2	19	SSUC209-27	TPTB209	28090	1.15	SSUCTPTB209-27
36954		54	54	107	95.3	124	42201	49.2	19	SSUC209-28	TPTB209	28090	1.15	SSUCTPTB209-28
	50	57.2	54	115	101.6	135	M16	51.6	19	SSUC210	TPTB210	30180	1.38	SSUCTPTB210
37080		57.2	54	115	101.6	135	42132	51.6	19	SSUC210-30	TPTB210	30180	1.38	SSUCTPTB210-30
1-15/16		57.2	54	115	101.6	135	42132	51.6	19	SSUC210-31	TPTB210	30180	1.38	SSUCTPTB210-31
2		57.2	54	115	101.6	135	42132	51.6	19	SSUC210-32	TPTB210	30180	1.38	SSUCTPTB210-32

Table 36: "CORROSION RESISTANT" -- SSUCTPFL 200Series
Bearing		Dimensions(mm)										Bolt	Bearing	Housing	Basic Dynamic	Weight	Unit Number
Bore Dia.												Dia.	No.	No.	Radial Load
															Rating(c)
Inch	mm	a	e	b	g	l	s	z	i	Bi	n				N	Kg
42006		113	90	64	11.4	26.5	11	33.7	15.4	31	12.7	42071	SSUC201-8	TPFL204	10890	0.22	SSUCTPFL201-8
42132		113	90	64	11.4	26.5	11	33.7	15.4	31	12.7	42071	SSUC202-10	TPFL204	10890	0.22	SSUCTPFL202-10
	20	113	90	64	11.4	26.5	11	33.7	15.4	31	12.7	M10	SSUC204	TPFL204	10890	0.22	SSUCTPFL204
42067		113	90	64	11.4	26.5	11	33.7	15.4	31	12.7	42071	SSUC204-12	TPFL204	10890	0.22	SSUCTPFL204-12
	25	131	99	69.5	13.5	29.1	11	36.7	17	34	14.3	M10	SSUC205	TPFL205	11910	0.28	SSUCTPFL205
42193		131	99	69.5	13.5	29.1	11	36.7	17	34	14.3	42071	SSUC205-14	TPFL205	11910	0.28	SSUCTPFL205-14
15/16		131	99	69.5	13.5	29.1	11	36.7	17	34	14.3	42071	SSUC205-15	TPFL205	11910	0.28	SSUCTPFL205-15
1		131	99	69.5	13.5	29.1	11	36.7	17	34	14.3	42071	SSUC205-16	TPFL205	11910	0.28	SSUCTPFL205-16
	30	148	117	80	13.3	30.5	11	41.2	19	38.1	15.9	M10	SSUC206	TPFL206	16670	0.41	SSUCTPFL206
36907		148	117	80	13.3	30.5	11	41.2	19	38.1	15.9	42071	SSUC206-17	TPFL206	16670	0.41	SSUCTPFL206-17
36899		148	117	80	13.3	30.5	11	41.2	19	38.1	15.9	42071	SSUC206-18	TPFL206	16670	0.41	SSUCTPFL206-18
36966		148	117	80	13.3	30.5	11	41.2	19	38.1	15.9	42071	SSUC206-19	TPFL206	16670	0.41	SSUCTPFL206-19
1-1/4S		148	117	80	13.3	30.5	11	41.2	19	38.1	15.9	42071	SSUC206-20	TPFL206	16670	0.41	SSUCTPFL206-20
	35	164	130	90	16.1	32.8	13	43.4	18	42.9	17.5	M12	SSUC207	TPFL207	22000	0.66	SSUCTPFL207
36895		164	130	90	16.1	32.8	13	43.4	18	42.9	17.5	42201	SSUC207-20	TPFL207	22000	0.66	SSUCTPFL207-20
37027		164	130	90	16.1	32.8	13	43.4	18	42.9	17.5	42201	SSUC207-21	TPFL207	22000	0.66	SSUCTPFL207-21
36958		164	130	90	16.1	32.8	13	43.4	18	42.9	17.5	42201	SSUC207-22	TPFL207	22000	0.66	SSUCTPFL207-22
37088		164	130	90	16.1	32.8	13	43.4	18	42.9	17.5	42201	SSUC207-23	TPFL207	22000	0.66	SSUCTPFL207-23
	40	176	144	100	20	37.5	14	51.7	21.5	49.2	19	M12	SSUC208	TPFL208	24890	0.91	SSUCTPFL208
36893		176	144	100	20	37.5	14	51.7	21.5	49.2	19	42201	SSUC208-24	TPFL208	24890	0.91	SSUCTPFL208-24
	45	188	148	108	21	41	17	54.2	24	49.2	19	M16	SSUC209	TPFL209	28090	1.08	SSUCTPFL209
37019		188	148	108	21	41	17	54.2	24	49.2	19	42132	SSUC209-26	TPFL209	28090	1.08	SSUCTPFL209-26
37211		188	148	108	21	41	17	54.2	24	49.2	19	42132	SSUC209-27	TPFL209	28090	1.08	SSUCTPFL209-27
36954		188	148	108	21	41	17	54.2	24	49.2	19	42132	SSUC209-28	TPFL209	28090	1.08	SSUCTPFL209-28
	50	197	157	115	21	43	17	57.6	25	51.6	19	M16	SSUC210	TPFL210	30180	1.24	SSUCTPFL210
37080		197	157	115	21	43	17	57.6	25	51.6	19	42132	SSUC210-30	TPFL210	30180	1.24	SSUCTPFL210-30
1-15/16		197	157	115	21	43	17	57.6	25	51.6	19	42132	SSUC210-31	TPFL210	30180	1.24	SSUCTPFL210-31
2		197	157	115	21	43	17	57.6	25	51.6	19	42132	SSUC210-32	TPFL210	30180	1.24	SSUCTPFL210-32

Table 37: Stainless steel ball bearing S6000,S6200 Series Metric size
			Boundary dimensions				Basic lond ratings		Limiting speeds		Mass
Bearing Number			(mm)				(kN)		(rpm)		(kg)
			d	D	B	Is min	Cr	Cor	Grease	Oil	(Approx)
S6000	S6000-2RS	S6000-ZZ	10	26	8	0.3	4.55	1.96	29000	34000	0.019
S6001	S6001-2RS	S6001-ZZ	12	28	8	0.3	5.1	2.39	26000	30000	0.021
S6002	S6002-2RS	S6002-ZZ	15	32	9	0.3	5.6	2.83	22000	26000	0.03
S6003	S6003-2RS	S6003-ZZ	17	35	10	0.3	6.8	3.35	20000	24000	0.039
S6004	S6004-2RS	S6004-ZZ	20	42	12	0.6	9.4	5.05	18000	21000	0.069
S6005	S6005-2RS	S6005-ZZ	25	47	12	0.6	10.1	5.85	15000	18000	0.08
S6006	S6006-2RS	S6006-ZZ	30	55	13	1	13.2	8.3	13000	15000	0.116
S6007	S6007-2RS	S6007-ZZ	35	62	14	1	16	10.3	12000	14000	0.155
S6008	S6008-2RS	S6008-ZZ	40	68	15	1	16.8	11.5	10000	12000	0.19
S6009	S6009-2RS	S6009-ZZ	45	75	16	1	21	15.1	9200	11000	0.237
S6010	S6010-2RS	S6010-ZZ	50	80	16	1	21.8	16.6	8400	9800	0.261
S6011	30011-2RS	S6012-ZZ	55	90	18	1.1	28.3	21.2	7700	9000	0.388
S6200	S6200-2RS	S6200-ZZ	10	30	9	0.6	5.1	2.39	25000	30000	0.032
S6201	S6201-2RS	S6201-ZZ	12	32	10	0.6	6.1	2.75	22000	26000	0.037
S6202	S6202-2RS	S6202-ZZ	15	35	11	0.6	7.75	3.6	19000	23000	0.045
S6203	S6203-2RS	S6203-ZZ	17	40	12	0.6	9.6	4.6	18000	21000	0.066
S6204	S6204-2RS	S6204-ZZ	20	47	14	1	12.8	6.65	16000	18000	0.106
S6205	S6205-2RS	S6205-ZZ	25	52	15	1	14	7.85	13000	15000	0.128
S6206	S6206-2RS	S6206-ZZ	30	62	16	1	19.5	11.3	11000	13000	0.199
S6207	S6207-2RS	S6207-ZZ	35	72	17	1.1	25.7	15.3	9800	11000	0.288
S6208	S6208-2RS	S6208-ZZ	40	80	18	1.1	29.1	17.8	8700	10000	0.366
S6209	S6209-2RS	S6209-ZZ	45	85	19	1.1	32.5	20.4	7800	9200	0.398
S6210	S6210-2RS	S6210-ZZ	50	90	20	1.1	35	23.2	7100	8300	0.454
S6211	S6211-2RS	S6211-ZZ	55	100	21	1.5	43.5	29.2	6400	7600	0.601

Table 38:Stainless steel ball bearing S6300 Series Metric size
			Boundary dimensions				Basic lond ratings		Limiting speeds		Mass
Bearing Number			(mm)				(kN)		(rpm)		(kg)
			d	D	B	Is min	Cr	Cor	Grease	Oil	(Approx.)
S6300	S6300-2RS	S6300-ZZ	10	35	11	0.6	8.2	3.5	23000	27000	0.053
S6301	S6301-2RS	S6301-ZZ	12	37	12	1	9.7	4.2	20000	24000	0.06
S6302	S6302-2RS	S6302-ZZ	15	42	13	1	11.4	5.45	17000	21000	0.082
S6303	S6303-2RS	S6303-ZZ	17	47	14	1	13.5	6.55	16000	19000	0.115
S6304	S6304-2RS	S6304-ZZ	20	52	15	1.1	15.9	7.9	14000	17000	0.144
S6305	S6305-2RS	S6305-ZZ	25	62	17	1.1	21.2	10.9	12000	14000	0.232
S6306	S6306-2RS	S6306-ZZ	30	72	19	1.1	26.7	15	10000	12000	0.36
S6307	S6307-2RS	S6307-ZZ	35	80	21	1.5	33.5	19.1	8800	10000	0.457
S6308	S6308-2RS	S6308-ZZ	40	90	23	1.5	40.5	24	7800	9200	0.63
S6309	S6309-2RS	S6309-ZZ	45	100	25	1.5	53	32	7000	8200	0.814
S6310	S6310-2RS	S6310-ZZ	50	110	27	2	62	38.5	6400	7500	1.07
S6311	S6311-2RS	S6311-ZZ	55	120	29	2	71.5	45	5800	6800	1.37

Table 39:Stainless steel ball bearing S6800,S6900 series Metric size
			Boundary dimensions				Basic lond ratings		Limiting speeds		Mass
Bearing Number			(mm)				(kN)		(rpm)		(kg)
			d	D	B	Is min	Cr	Cor	Grease	Oil	(Approx.)
S6800	S6800-2RS	S6800-ZZ	10	19	5	0.3	1.83	0.925	32000	38000	0.005
S6801	S6801-2RS	S6801-ZZ	12	21	5	0.3	1.92	1.04	29000	35000	0.006
S6802	S6802-2RS	S6802-ZZ	15	24	5	0.3	2.08	1.26	26000	31000	0.007
S6803	S6803-2RS	S6803-ZZ	17	26	5	0.3	2.23	1.46	24000	28000	0.008
S6804	S6804-2RS	S6804-ZZ	20	32	7	0.3	4	2.47	21000	25000	0.019
S6805	S6805-2RS	S6805-ZZ	25	37	7	0.3	4.3	2.95	18000	21000	0.022
S6806	S6806-2RS	S6806-ZZ	30	42	7	0.3	4.7	3.65	15000	18000	0.026
S6807	S6807-2RS	S6807-ZZ	35	47	7	0.3	4.9	4.05	13000	16000	0.029
S6808	S6808-2RS	S6808-ZZ	40	52	7	0.3	5.1	4.4	12000	14000	0.033
S6809	S6809-2RS	S6809-ZZ	45	58	7	0.3	5.35	4.95	11000	12000	0.04
S6810	S6810-2RS	S6810-ZZ	50	65	7	0.3	6.6	6.1	9600	11000	0.052
S6811	S6811-2RS	S6811-ZZ	55	72	9	0.3	8.8	8.1	8700	10000	0.083
			Boundary dimensions				Basic lond ratings		Limiting speeds		Mass
Bearing Number			(mm)				(kN)		(rpm)		(kg)
			d	D	B	Is min	Cr	Cor	Grease	Oil	(Approx.)
S6900	S6900-2RS	S6900-ZZ	10	22	6	0.3	2.7	1.27	30000	36000	0.009
S6901	S6901-2RS	S6901-ZZ	12	24	6	0.3	2.89	1.46	27000	32000	0.011
S6902	S6902-2RS	S6902-ZZ	15	28	7	0.3	3.65	2	24000	28000	0.016
S6903	S6903-2RS	S6903-ZZ	17	30	7	0.3	4.65	2.58	22000	26000	0.018
S6904	S6904-2RS	S6904-ZZ	20	37	9	0.3	6.4	3.7	19000	23000	0.036
S6905	S6905-2RS	S6905-ZZ	25	42	9	0.3	7.05	4.55	16000	19000	0.042
S6906	S6906-2RS	S6906-ZZ	30	47	9	0.3	7.25	5	14000	17000	0.048
S6907	S6907-2RS	S6907-ZZ	35	55	10	0.6	9.55	6.85	12000	15000	0.074
S6908	S6908-2RS	S6908-ZZ	40	62	12	0.6	12.2	8.9	11000	13000	0.11
S6909	S6909-2RS	S6909-ZZ	45	68	12	0.6	13.1	10.4	98000	12000	0.128
S6910	S6910-2RS	S6910-ZZ	50	72	12	0.6	13.4	11.2	8900	11000	0.132
S6911	S6911-2RS	S6911-ZZ	55	80	13	1	16	13.3	8200	9600	0.18

Table 40:Stainless steel ball bearing S1600 series Inch size
			Boundary dimensions				Basic lond ratings		Mass
Bearing Number			(mm)				(kN)		(kg)
			d	D	B	Is min	Cr	Cor	(Approx.)
S1601	S1601-2RS	S1601-ZZ	42079	42324	*1/4	0.012	1510	720	0.007
S1602	S1602-2RS	S1602-ZZ	42008	42324	*1/4	0.012	1510	720	0.006
S1603	S1603-2RS	S1603-ZZ	42140	42193	*9/32	0.012	2540	1340	0.01
S1604	S1604-2RS	S1604-ZZ	42071	7/8*	*9/32	0.015	2540	1340	0.015
S1605	S1605-2RS	S1605-ZZ	42140	29/32	42140	0.012	2540	1340	0.012
S1606	S1606-2RS	S1606-ZZ	42071	29/32	42140	0.015	2540	1340	0.014
S1607	S1607-2RS	S1607-ZZ	42201	29/32	42140	0.015	3550	1340	0.016
S1614	S1614-2RS	S1614-ZZ	42071	36899	42071	0.025	3920	2240	0.035
S1615	S1615-2RS	S1615-ZZ	42201	36899	42071	0.025	3920	2240	0.037
S1616	S1616-2RS	S1616-ZZ	42006	36899	42071	0.025	3920	2240	0.03
S1620	S1620-2RS	S1620-ZZ	42263	36958	42201	0.025	5880	3470	0.05
S1621	S1621-2RS	S1621-ZZ	42132	36958	42201	0.025	5880	3470	0.048
S1622	S1622-2RS	S1622-ZZ	42132	36958	42201	0.025	5880	3470	0.046
S1623	S1623-2RS	S1623-ZZ	42067	36958	42201	0.025	5880	3470	0.04
S1628	S1628-2RS	S1628-ZZ	42132	37019	42006	0.025	7230	4440	0.072
S1630	S1630-2RS	S1630-ZZ	42067	37019	42006	0.025	7230	4440	0.065
S1633	S1633-2RS	S1633-ZZ	42132	36954	42006	0.025	7230	4440	0.09
S1635	S1635-2RS	S1635-ZZ	42067	36954	42006	0.025	7230	4440	0.085
S1638	S1638-2RS	S1638-ZZ	42067	2	42263	0.035	10780	6940	0.12
S1640	S1640-2RS	S1640-ZZ	42193	2	42263	0.035	10780	6940	0.11
S1641	S1641-2RS	S1641-ZZ	1	2	42263	0.035	10780	6940	0.1
S1652	S1652-2RS	S1652-ZZ	36899	37258	42132	0.035	12800	8400	0.21
S1654	S1654-2RS	S1654-ZZ	36895	37258	42132	0.035	12800	8400	0.19
S1657	S1657-2RS	S1657-ZZ	36895	37515	42324	0.035	14970	1000	0.22
S1658	S1658-2RS	S1658-ZZ	37027	37515	42324	0.035	14970	1000	0.2

Table 41: Stainless steel ball bearing SR series Inch size
				Boundary dimensions							Mass
Bearing Number			d		D		B		Is min		(Approx.)
			in	mm	in	mm	in	mm	in	mm	(kg)
SR6			42071	9.525	42193	22.225	0.2189	5.56	0.016	0.4	11
SR8	SR8-2RS	SR8-ZZ	42006	12.7	42006	28.575	0.25	6.35	0.016	0.4	18
SR10	SR10-2RS	SR10-ZZ	42132	15.875	42132	34.925	0.2181	5.54	0.031	0.8	37
SR12	SR12-2RS	SR12-ZZ	42067	19.05	42067	41.275	0.3126	7.94	0.031	0.8	47
SR14	SR14-2RS	SR14-ZZ	42193	22.225	42193	47.625	0.3752	9.53	0.031	0.8	71
SR16	SR16-2RS	SR16-ZZ	1	25.4	1	50.8	0.3752	9.53	0.031	0.8	85
SR18	SR18-2RS	SR18-ZZ	36899	28.575	36899	53.975	0.3752	9.53	0.031	0.8	90
SR20	SR20-2RS	SR20-ZZ	36895	31.75	36895	57.15	0.3752	9.53	0.031	0.8	95
SR22	SR22-2RS	SR22-ZZ	36958	34.925	36958	63.5	0.4374	11.11	0.031	0.8	106
SR24	SR24-2RS	SR24-ZZ	36893	38.1	36893	66.675	0.4374	11.11	0.031	0.8	141

				Boundary dimensions							Mass
Bearing Number			d		D		B		Is min		(Approx.)
			in	mm	in	mm	in	mm	in	mm	(kg)
SR0			3/64	1.191	5/32	3.969	0.0626	1.59	0.004	0.1	0.09
SR1			0.055	1.397	42079	4.763	0.078	1.98	0.004	0.1	0.17
SR133		SR133-ZZ	3/32	2.381	42079	4.763	0.0626	1.59	0.004	0.1	0.12
SR144		SR144-ZZ	42012	3.175	42008	6.35	0.0937	2.38	0.004	0.1	0.27
SR2	SR2-2RS	SR2-ZZ	42012	3.175	42071	9.525	0.1563	3.97	0.012	0.3	1.5
SR2A		SR2A-ZZ	42012	3.175	42006	12.7	0.172	4.37	0.012	0.3	3.2
SR155		SR155-ZZ	5/32	3.969	42140	7.938	0.1094	2.78	0.004	0.1	0.5
S156		SR156-ZZ	42079	4.763	42140	7.938	0.1094	2.78	0.004	0.1	0.5
S166		SR166-ZZ	42079	4.763	42071	9.525	0.1252	3.18	0.004	0.1	1
SR3	SR3-2RS	SR3-ZZ	42079	4.763	42006	12.7	0.1563	3.97	0.012	0.3	2.3
SR3A		SR3A-ZZ	42079	4.763	42006	12.7	0.1961	4.98	0.012	0.3	2.7
SR168		SR168-ZZ	42008	6.35	42071	9.525	0.1252	3.18	0.004	0.1	0.5
SR188		SR188-ZZ	42008	6.35	42006	12.7	0.1252	3.18	0.006	0.15	1.8
SR4	SR4-2RS	SR4-ZZ	42008	6.35	42132	15.875	0.1961	4.98	0.012	0.3	4.5
SR4A		SR4A-ZZ	42008	6.35	42067	19.05	0.2189	5.56	0.016	0.4	7.7
		SR1038-ZZ	42071	9.525	42132	15.875	0.1563	3.97
		SR1212-ZZ	42006	12.7	42067	19.05	0.1563	3.97
		SR1458-ZZ	42132	15.875	42193	22.225	0.1563	3.97
		SR1810-ZZ	42140	7.938	42006	12.7	0.1563	3.97

Table 42: Stainless steel ball bearing S600,S620,S680,S690 series Metric size
			Boundary dimensians				Basic load ratings		Limiting speeds		Mass
Bearing Number			(mm)				(kN)		(rpm)		(kg)
			d	D	B	Is min	Cr	Cor	Grease	Oil	(Apprax.)
S604	S604-2RS	S604-ZZ	4	12	4	0.2	1000	0.2	43000	51000	2.1
S605	S605-2RS	S605-ZZ	5	14	5	0.2	1330	505	39000	46000	3.5
S606	S606-2RS	S606-ZZ	6	17	6	0.3	2190	865	35000	42000	6
S607	S607-2RS	S607-ZZ	7	19	6	0.3	2240	910	34000	40000	8
S608	S608-2RS	S608-ZZ	8	22	7	0.3	3350	1400	32000	37000	12
S609	S609-2RS	S609-ZZ	9	24	7	0.3	3400	1450	31000	36000	14
		Boundary dimensians				Basic load rarings		Limiting speads		Mass
Bearing Number		(mm)				(kN)		(rpm)		(kg)
		d	D	B	Is min	Cr	Cor	Grease	Oil	(Approx.0
S623-2RS	S623-ZZ	3	10	4	0.15	640	224	50000	58000	1.6
S624-2RS	S624-ZZ	4	13	5	0.2	1310	490	42000	49000	3.2
S625-2RS	S625-ZZ	5	16	5	0.3	1760	680	37000	44000	4.8
S626-2RS	S626-ZZ	6	19	6	0.3	2340	865	34000	40000	8.1
S627-2RS	S627-ZZ	7	22	7	0.3	3350	1400	32000	37000	13
S685	S685-ZZ	5	11	3	0.15	715	282	43000	51000	1.1
S686	S686-ZZ	6	13	3.5	0.15	1080	440	39000	46000	1.9
S687	S687-ZZ	7	14	3.5	0.15	1170	505	37000	44000	2.1
S688		8	16	4	0.2	1610	715	35000	41000	3.1
	S688-ZZ	8	16	5	0.2	1610	715	35000	41000	3.1
S689		9	17	4	0.2	1720	820	33000	32000	3.2
	S694-ZZ	4	11	4	0.15	715	276	45000	32000	7.8
	S699-ZZ	9	20	6	0.3	2480	1090	32000	38000

Shaoxing Zhenhua Bearing Co.,Ltd

Home About Us Products Events Contacts

QQ：1097079072 Tel：400 0500 687 E-mail：business@zh-bearing.com Add：Shaoxing,Zhejjiang.China 312375

15+Years Bearing Supplier

Stainless Steel Bearings

15+Years
Bearing Supplier
